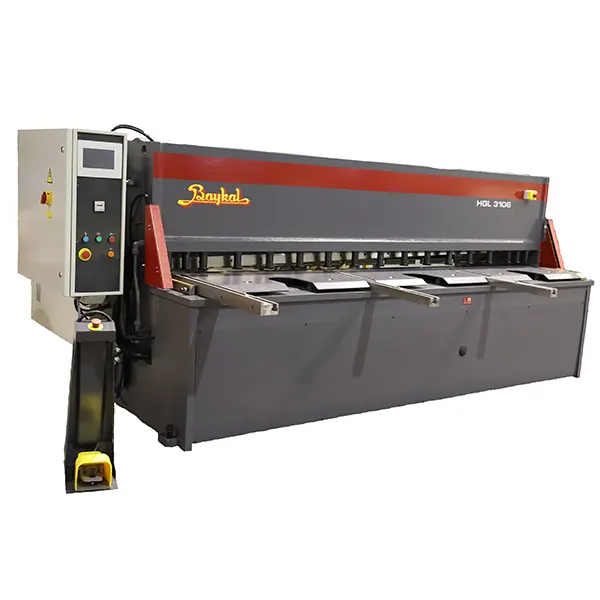

Baykal HGL Hydraulic Swing Beam Shear

The HGL hydraulic swing beam design shear is a very economical shear with all of the features typically required. The pull down design provides the ability to have a low profile hydraulic shear that is easy to operate by any operator. Shearing capacity is 1/4-inch and shearing length is 6, 8, 10 and 13 foot.

MAIN FEATURES:

• All welded design providing maximum rigidity and cutting accuracy
• CYBTOUCH 6 touch screen controller for easy programming of the back gauge position and keeping stroke counts. You can use it as a “GO TO” function or program a full part with separate cuts
• 30 inch power back gauge which is ballscrew driven with swing up function
• Full hydraulic holddown system
• Top beam and work table of boxtype construction
• Cylinders are mounted below the bed for a pull down of the upper beam providing short height to see easily behind the shear machine for safety
• Rear safety guarding to prevent access to the back of the shear during operation Shadow line cutting
• Digital stroke counter
• Large quantity of holddowns for maximum holding strength
• Two flat support arms 40 inch in length (Three on 13 foot machines)
• Work table with filler plates, hand slots, and ball transfers
• Back gauge retract function
• Squaring arm of 40 inches with scale, t-slot, and flip stop
• Compact low maintenance hydraulics located underneath the work table
• Foot pedal operation with emergency stop
• Adjustable stroke length for higher speeds when not cutting full length
• Fixed finger light guard
